CBSE Class 10 Science 2024-25: Chapter 11 Electricity Competency-Based Questions with Answers; Download Free PDF

As the CBSE Class 10 board exams get closer, it’s important for students to understand the new exam pattern. Starting in the 2024-25 school year, CBSE will include 50% more competency-based questions. These questions will be both multiple choice and written, focusing on how to use what students have learned in real-life situations.

This article explores Chapter 11: Electricity. It highlights key competency-based questions and provides answers to help students succeed. Prepare for your CBSE Class 10 Science exams with important competency-based questions from Chapter 11: Electricity.

CBSE Class 10 Science Chapter 11: Electricity Important Competency-Based Questions

Q.1 The graph below showsthe variation of resistivity of copper with temperature.

He then heats the copper resistor. What will happen to the current flowing through the circuit? Why?

A. The current will increase because the resistance of copper increases with an increase in temperature.
B. The current will increase because the resistance of copper decreases with an increase in temperature.
C. The current will decrease because the resistance of copper increases with an increase in temperature.
D. The current will decrease because the resistance of copper decreases with an increase in temperature.

Answer. C. The current will decrease because the resistance of copper increases with an increase in temperature.

Q.2 Priya has three resistors each of resistance 2 Ω.

Which of the following resistances will she NOT be able to get by combining these resistors is different combinations?

A. 0.67 Ω
B. 0.75 Ω
C. 3 Ω
D. 6 Ω

Answer. B. 0.75 Ω

Q.3 A cylindrical copper wire X of length l and radius r has a resistance R and resistivity ρ. Another copper wire Y has a length 2l and a radius 2r.

Which of the following rows in the table shows the correct resistance and resistivity of the copper wire Y?

A. I
B. II
C. III
D. IV

Answer. A. I

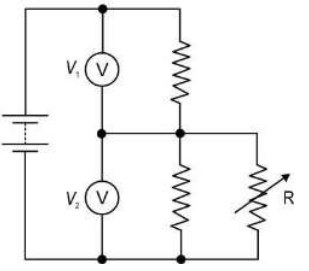

Q.4 The variable resistor R is connected in a circuit, as shown below. A variable resistor is one whose resistance can be changed.

The resistance of R is increased. What will happen to the voltmeter readings V₁ and V₂?

A. V₁ increases; V₂ increases
B. V₁ increases; V₂ decreases
C. V₁ decreases; V₂ increases
D. V₁ decreases; V₂ decreases

Answer. C. V₁ decreases; V₂ increases

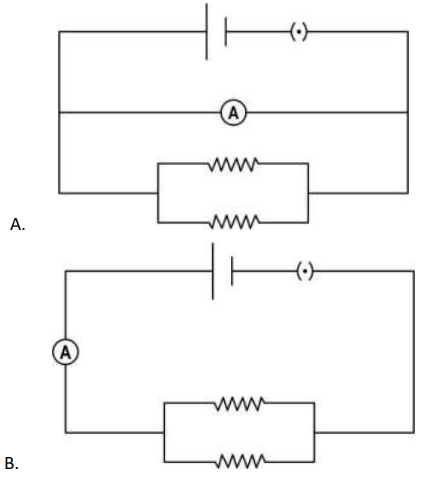

Q.5 Kishore connects two resistors in parallel. He wants to measure the total current through the two resistors.

Which of the following shows the correct arrangement to measure the current through Ammeter ‘A’?

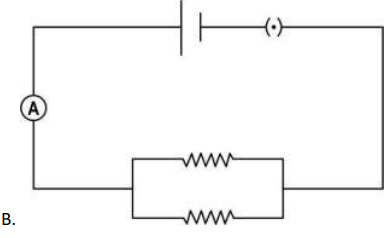

Answer.

-
