Question 1
4 / -1

In a P–type semiconductor, germanium is dopped with

A
Gallium

B
Boron

C
Aluminum

D
All of these
Question 2
4 / -1

A piece of semiconductor is connected in series in an electric circuit. On increasing the temperature, thecurrent in the circuit will

A
Decrease

B
Remain unchanged

C
Increase

D
Stop flowing
Question 3
4 / -1

In extrinsic semiconductors

A
The conduction band and valence band overlap

B
The gap between conduction band and valence band is more than 16 eV

C
The gap between conduction band and valence band is near about 1 eV

D
The gap between conduction band and valence band will be 100 eV and more
Question 4
4 / -1

Resistivity of a semiconductor depends on

A
Shape of semiconductor

B
Atomic nature of semiconductor

C
Length of semiconductor

D
Shape and atomic nature of semiconductor
Question 5
4 / -1

Although carbon, silicon and germanium have same lattice structure and four valence electrons each, their band structure leads to the energy gaps as

A
E_g(Si) g(Ge) g(C)

B
E_g(SD> E_g(Ge)< E_g(C)

C
E_g(Si) < E_g(Ge)> E_g(C)

D
E_g(Si)> E_g(Ge)> E_g(C)
Question 6
4 / -1

Pure Si at 500 K has equal number of electron (n_e) and hole (n_h) concentrations of 1.5 × 10¹⁶ m^–3. Doping byindium increases n_h to 4.5 × 10²² m^–3. The doped semiconductor is of

A
n-type with electron concentration n_e = 2.5 × 10²³m^–3

B
p-type having electron concentration n_e = 5 × 10⁹m^–3

C
n-type with electron concentration n_e = 5 × 10²²m^–3

D
p-type with electron concentration n_e = 2.5 ×10¹⁰m^–3

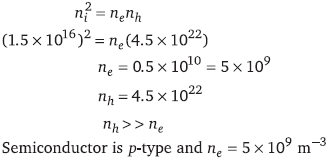

Solution
Question 7
4 / -1

C and Si both have same lattice structure, having 4 bonding electrons in each. However, C is insulator where as Si is intrinsic semiconductor. This is because

A
In case of C the valence band is not completely filled at absolute zero temperature

B
In case of C the conduction band is partly filled even at absolute zero temperature

C
The four bonding electrons in the case of C lie in the second orbit, whereas in the case of Si they lie in the third

D
The four bonding electrons in the case of C lie in the third orbit, whereas for Si they lie in the fourth orbit

Solution
Question 8
4 / -1

In the forward bias arrangement of a PN–junction diode

A
The N–end is connected to the positive terminal of the battery

B
The P–end is connected to the positive terminal of the battery

C
The direction of current is from N–end to P–end in the diode

D
The P–end is connected to the negative terminal of battery
Question 9
4 / -1

A p–n photodiode is fabricated from a semiconductor with a band gap of 2.5 eV. It can detect a signal of wavelength

A
6000 Å

B
4000 nm

C
6000 nm

D
4000 Å

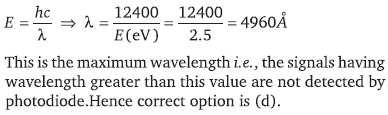

Solution
Question 10
4 / -1

The reverse biasing in a PN junction diode

A
Decreases the potential barrier

B
Increases the potential barrier

C
Increases the number of minority charge carriers

D
Increases the number of majority charge carriers
