Question 1
4 / -1

Calculate net resistance beween A and B

A
10 Ω

B
30 Ω

C
25 Ω

D
Question 2
4 / -1

Calculate net resistance beween A and B

A
3 Ω

B

C
2 Ω

D
Question 3
4 / -1

Calculate net resistance beween A and B

A

B

C

D
Question 4
4 / -1

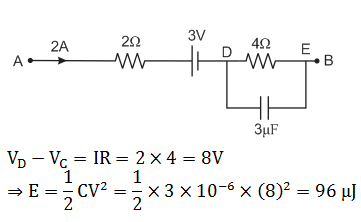

What is the enrergy stored in the capacitor?

A
72 μJ

B
96 μJ

C
96 mJ

D
96 MJ

Solution
Question 5
4 / -1

In the circuit shown, the current sources are of negligible internal resistances. What is the potential difference between the points B and A ?

A
–4.0 V

B
4.0 V

C
–8.0 V

D
8.0 V

Solution
Question 6
4 / -1

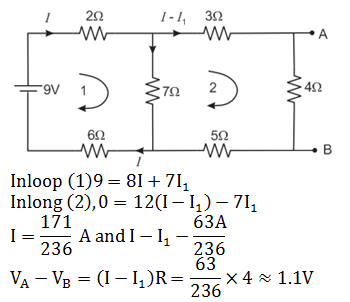

what is the potential aross the points A and B?

A
0.9 V

B
1.1 V

C
1.3 V

D
0.7 V

Solution
Question 7
4 / -1

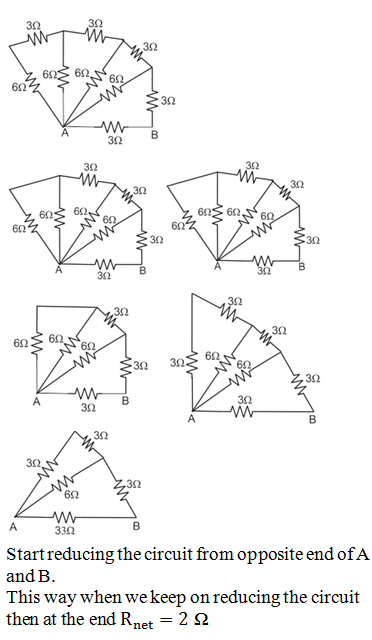

Six resistors of 3 Ω each are connected along the sides of a hexagon and three resistors of 6 Ω each are connected along AC, AD, and AE as shown in the figiure. The equivalent resistance between A and B is equal to:

A
3 Ω

B
9 Ω

C
2 Ω

D
16 Ω

Solution
Question 8
4 / -1

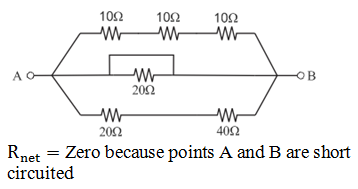

The total electrial resistance between the points A and B for the circuit figure shown below is:

A
0 Ω

B
15 Ω

C
30 Ω

D
100 Ω

Solution
Question 9
4 / -1

Net resistance between A and B in the given network is ...

A

B

C

D
Question 10
4 / -1

Net resistance between A and B in the given network is:

A
10 Ω

B
40 Ω

C

D

Solution
