Electrostatics Test - 149

Result Self Studies

Electrostatics Test - 149
  • Score

    -

    out of -
  • Rank

    -

    out of -
TIME Taken - -
Self Studies

SHARING IS CARING

If our Website helped you a little, then kindly spread our voice using Social Networks. Spread our word to your readers, friends, teachers, students & all those close ones who deserve to know what you know now.

Self Studies Self Studies
Weekly Quiz Competition
  • Question 1
    4 / -1
    The equivalent capacitance between points A and B for the combination of capacitors shown in figure, where all capacitances are in microfarad is

    Solution

  • Question 2
    4 / -1

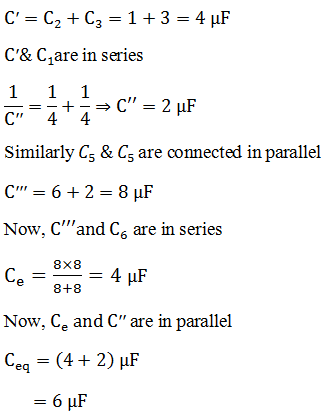

    Equivalent capacitance between A and B is

    Solution

  • Question 3
    4 / -1

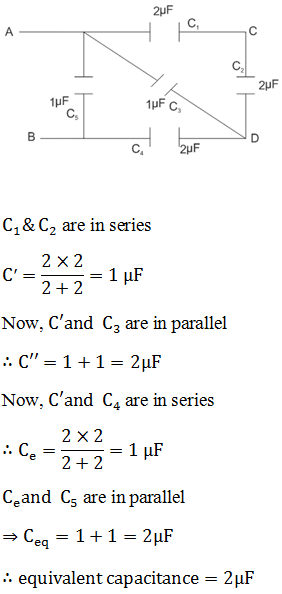

    The effective capacitance between points A and B is

    Solution

  • Question 4
    4 / -1

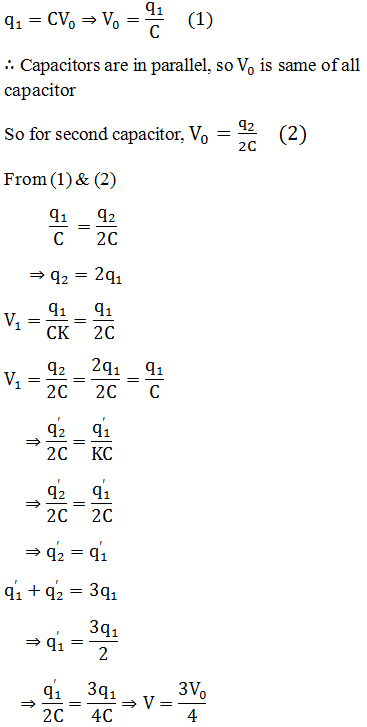

    Two parallel plate capacitors of capacitances C and 2C are connected in parallel and charged to a potential difference V0 . The battery is then disconnected and the region between the plates of the capacitor C is completely filled with a material of dielectric constant 2. The potential difference across the capacitors now becomes
    Solution

  • Question 5
    4 / -1

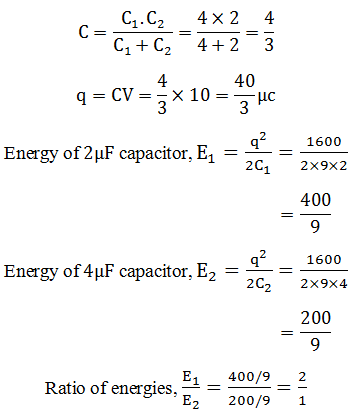

    Two capacitors of capacitance 2 µF and 4 uF respectively are connected in series. The combination is connected across a potential difference of 10 V. The ratio of energies stored by capacitors will be
    Solution

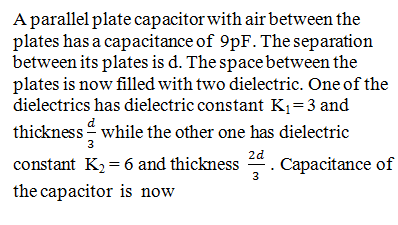

  • Question 6
    4 / -1

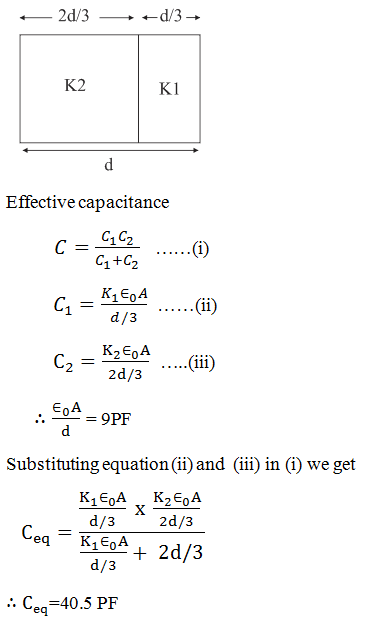

    Solution

  • Question 7
    4 / -1

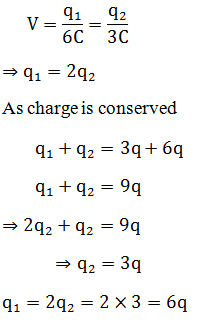

    In given circuit when switch S has been closed, then charge on capacitor A and B respectively are

    Solution

  • Question 8
    4 / -1

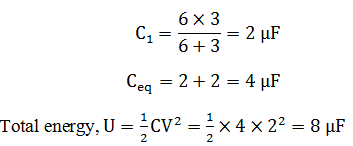

    The total energy stored in the condenser system shown in the figure will be

    Solution

  • Question 9
    4 / -1
    Four plates of equal area A are separated by equal distance d and are arranged as shown in the figure. The equivalent capacity is
    Solution

  • Question 10
    4 / -1
    Two parallel plates of area A are separated by two different dielectric as shown in figure. The net capacitance is
    Solution
