Electrostatics ...

TIME LEFT -
  • Question 1
    4 / -1

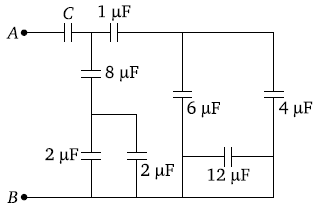

    In the following circuit, the resultant capacitance between A and B is 1 µF. Then the value of C is

  • Question 2
    4 / -1

    Two dielectric slabs of constant K1 and K2 have been filled in between the plates of a capacitor as shown below. What will be the capacitance of the capacitor?

  • Question 3
    4 / -1

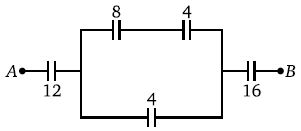

    What is the equivalent capacitance between A and B in the given figure (all are in Farad)?

  • Question 4
    4 / -1

    A condenser having a capacity of 6 µF is charged to 100 V and is then joined to an uncharged condenser of 14 µF and then removed. The ratio of the charges on 6 µF and 14 µF and the potential of 6 µF will be

  • Question 5
    4 / -1

    0.2 F capacitor is charged to 600 V by a battery. On removing the battery, it is connected with another parallel condenser of 1 F. the potential decreases to

  • Question 6
    4 / -1

    Minimum number of capacitors of 2 µF capacitance each required to obtain of 5 µF will be

  • Question 7
    4 / -1

    The total energy stored in the condenser system shown in the figure will be

  • Question 8
    4 / -1

    The equivalent capacitance between A and B in the figure is 1 µF. Then, the value of capacitance C is

  • Question 9
    4 / -1

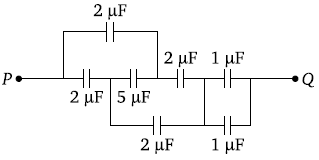

    The effective capacitance between the points P and Q of the arrangement shown in the figure is

  • Question 10
    4 / -1

    A capacitor of capacitance 5 µF is connected as shown in the figure. The internal resistance of the cell is 0.5 Ω. The amount of charge on the capacitor plate is
