Question 1
4 / -1

In a double slit arrangement fringes are produced using light of wavelength 4800 Å. One slit is covered by a thin plate of glass of refractive index 1.4 and the other with another glass plate of same thickness but of refractive index 1.7. By doing so the central bright shifts to original fifth bright fringe from centre. Thickness of glass plate is

A
8µm

B
6µm

C
4µm

D
10µm

Solution
Question 2
4 / -1

Two point sources X and Y emit waves of same frequency and speed but Y lags in phase behind X by 2πl radian. If there is a maximum in direction D the distance XO using n as an integer is given by

A

B

C

D

Solution
Question 3
4 / -1

A beam with wavelength λ falls on a stack of partially reflecting planes with separation d. The angle θ that the beam should make with the planes so that the beams reflected from successive planes may interfere constructively is (where n = 1, 2……)

A

B

C

D

Solution
Question 4
4 / -1

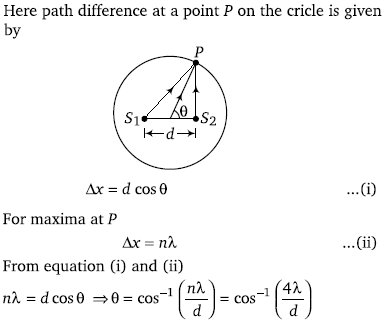

Two coherent sources separated by distance d are radiating in phase having wavelength λ. A detector moves in a big circle around the two sources in the plane of the two sources. The angular position of n = 4 interference maxima is

A

B

C

D

Solution
Question 5
4 / -1

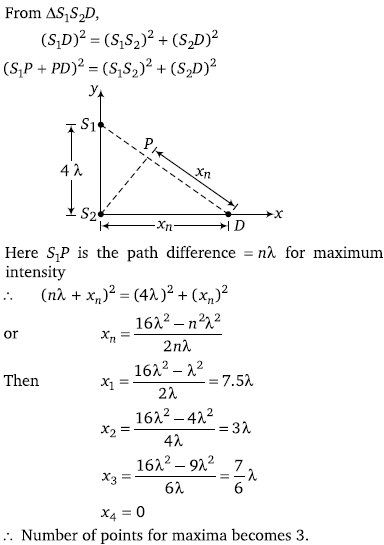

Two coherent sources S₁ and S₂ are separated by a distance four times wavelength λ of the source. The sources lies along y axis whereas a detector moves along + x axis. Leaving the origin and far off points the number of points where maxima are observe is

A
2

B
3

C
4

D
5

Solution
Question 6
4 / -1

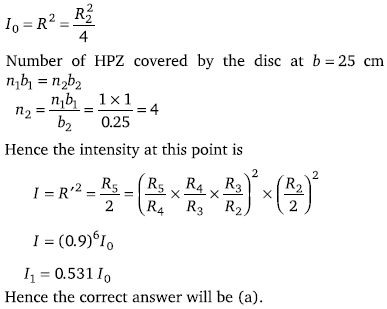

A circular disc is placed in front of a narrow source. When the point of observation is at a distance of 1 meter from the disc, then the disc covers first HPZ. The intensity at this point is I₀ The intensity at a point distance 25 cm from the disc will be (If ratio of consecutive amplitude of HPZ is 0.9)

A
I₁ = 0.531I₀

B
I₁ = 0.053 I₀

C
I₁ = 53 I₀

D
I₁ = 5.03 I₀

Solution
Question 7
4 / -1

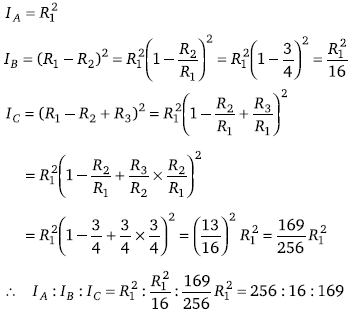

A wavefront presents one, two and three HPZ at points A, B and C respectively. If the ratio of consecutive amplitudes of HPZ is 4 : 3, then the ratio of resultant intensities at these point will be

A
169 : 16 : 256

B
256 : 16 : 169

C
256 : 16 : 196

D
256 : 196 : 16

Solution
Question 8
4 / -1

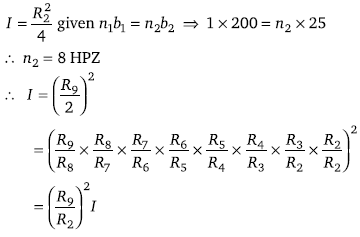

A circular disc is placed in front of a narrow source. When the point of observation is 2 m from the disc, then it covers first HPZ. The intensity at this point is I. When the point of observation is 25 cm from the disc then intensity will be

A

B

C

D

Solution
Question 9
4 / -1

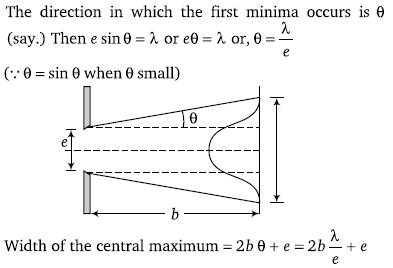

In a single slit diffraction of light of wavelength λ by a slit of width e, the size of the central maximum on a screen at a distance b is

A

B

C

D

Solution
Question 10
4 / -1

Angular width of central maxima in the Fraunhoffer diffraction pattern of a slit is measured. The slit is illuminated by light of wavelength 6000 Å. When the slit is illuminated by light of another wavelength, the angular width decreases by 30%. The wavelength of this light will be

A
6000 Å

B
4200 Å

C
3000 Å

D
1800 Å

Solution
