A thermodynamic process of one mole ideal monoatomic gas is shown in figure. The efficiency of cyclic process ABCA will be :

Two identical conducting spheres each having radius r are placed at large distance. lnitially charge on one sphere is q, while charge on another sphere is zero when they are connected by conducting wire as shown in figure then find total heat produced when switch S is closed :

A soap bubble (surface tension = T) is charged to a maximum surface density of charge = σ, when it is just going to burst. Its radius R is given by:

Magnetic moments of two identical magnets are M and 2M respectively. Both are combined in such a way that their similar poles are same side. The time period in this case is ‘T1’ .If polarity of one of the magnets is reversed its period becomes ‘T2’ then find out ratio of their time periods T1/T2.

Find the heat generated after the switch S is closed in the following circuit-

An infinite current carrying wire, carrying current I is bent in V shape, lying in x-y plane as shown in figure. Intensity of magnetic field at point P will be (take OP = 2a)

A small circular wire loop of radius a is located at the centre of a much larger circular wire loop of radius b as shown above (b> >a). Both loops are coaxial and coplanar. The larger loop carries a time (t) varying current I = I0 cos ωt where I0 and ω are constants. The large loop induces in the small loop an emf that is approximately equal to which of the following.

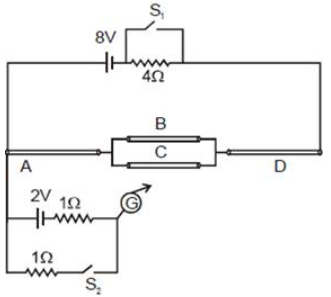

Four wire A, B, C and D each of length \(\ell=10 \mathrm{cm}\)and each of area of cross section is 0.1 m2 are connected in the given circuit. Then, the position of null point is

Given that resistivity

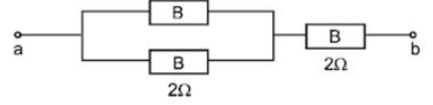

Three identical bulbs each of resistance 2Ω are connected as shown. The maximum power that can be consumed by individual bulb is 32W, then the maximum power consumed by the combination is :

A car completes a certain journey in 8 hours. It covers half the distance at 40 km/hr and the rest at 60 km/hr. The length of the journey is.....
