The width of the depleted region of a p-n junction is of the order of a few tenth of a ________.

p-n junction is said to be forward bias. If

The delpetion layer in a p-n junction diode is $$10^{-6}m$$ wide and its knee potential is $$0.5V$$, then the inner electric field in the depletion region is:

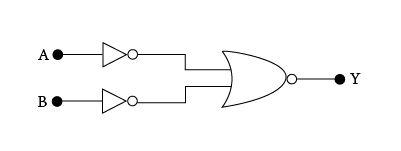

The circuit given represents which of logic operations

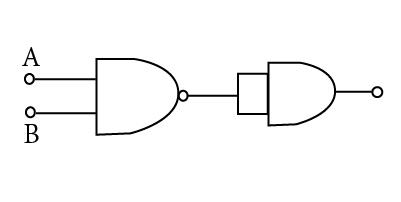

Which logic gates is represented by the following combination of logic gates?

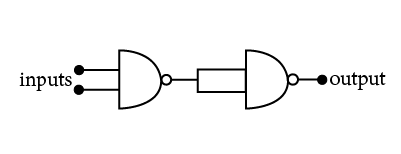

Identify the logic operation of the following logic circuit:

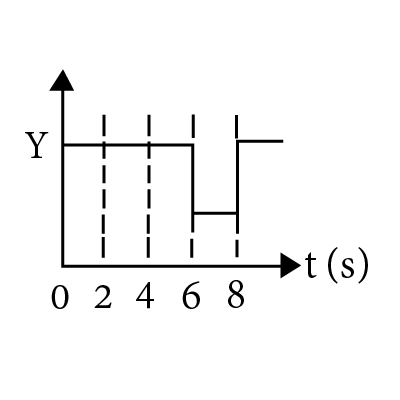

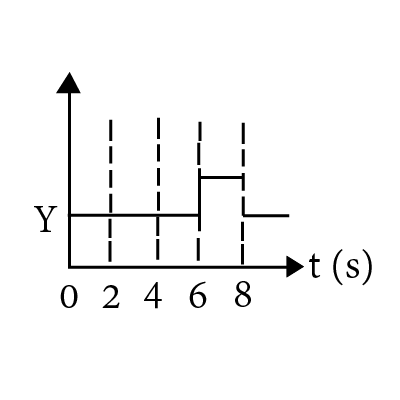

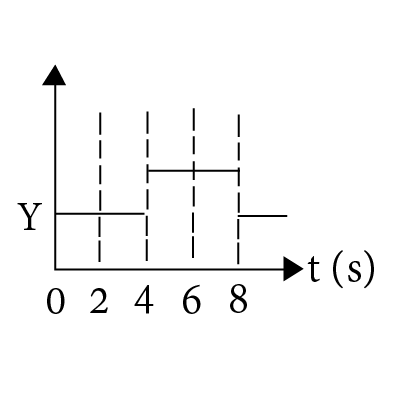

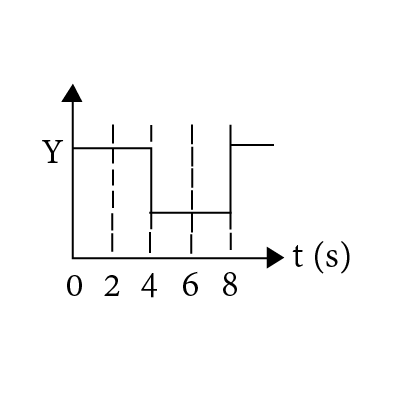

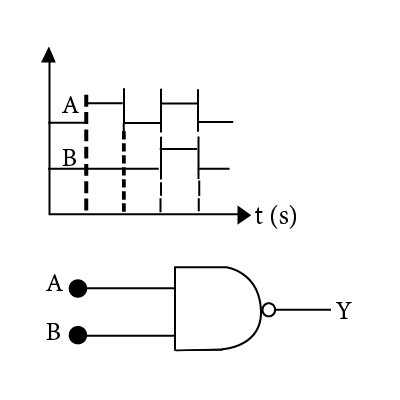

The real time variation of input signals $$A$$ and $$B$$ are as shown below. If the inputs are fed into NAND gate, then select the output signal from the following.

The input to the digital circuit are as shown below. The output Y is:

As we are growing in technology, use of wires in an electrical circuit is reducing. This is done by using semiconductor chips or reducing length of wire as much as possible. What could be the possible reason for the above?

The part of a transistor which is heavily dopped to produce a large number of majority carriers is:
