Question 1
1 / -0

Which figure is the top view of the given solid?

A
figure 1

B
figure 2

C
figure 4

D
figure 3

Solution

The top view of the given solid is option $$(A) Figure$$ $$1$$
Question 2
1 / -0

The side view of the given cube is

A
square

B
triangle

C
circle

D
parallelogram

Solution

The side view of the given cube is square.
Question 3
1 / -0

The side view of the pentagonal prism is

A
pentagon

B
square

C
rectangle

D
parallellogram

Solution

Side view looks like this which is a parallelogram.
Question 4
1 / -0

Identify which figure is represented as top view?

A
figure 3

B
figure 2

C
figure 4

D
figure 1

Solution
Question 5
1 / -0

Determine which three-dimensional figures match the views.

A

B

C

D

Solution

The second figure match the views.
Question 6
1 / -0

Which of the following shows the side elevation?

A

B

C

D

Solution

The second option shows the side view of the picture.
Question 7
1 / -0

Find out the side view of the diagram.

A

B

C

D

Solution

The last option is a side view of the given diagram.
Question 8
1 / -0

Which of the following shows the front elevation?

A

B

C

D

Solution
Question 9
1 / -0

Name the top view of the diagram.

A
pentagon

B
square

C
rectangle

D
triangle

Solution

The top view is a pentagon.
Question 10
1 / -0

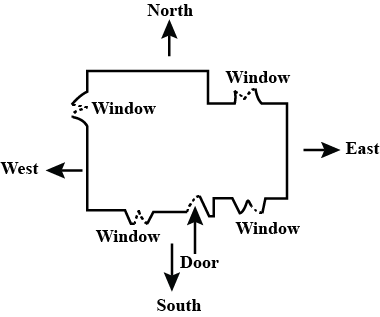

Total number of windows?

A
1

B
2

C
3

D
4

Solution

From the given floor plan for the house, we can observe that, there are 4 (four) windows.in the house.
$$\therefore$$ Option D.4 is correct answer.
