Question 1
1 / -0

Which of the following is the top view of the given shape ?

A

B

C

D

Solution

The correct answer is option $$(d).$$
When, seen from top we see $$1$$ square from $$1^{st}$$ row with diamond on it, and $$2$$ blank squares from $$2^{nd}$$ row.
Question 2
1 / -0

How many windows are there on the front side?

A
1

B
2

C
3

D
4

Solution

Given figure is as follows:
Refer image,

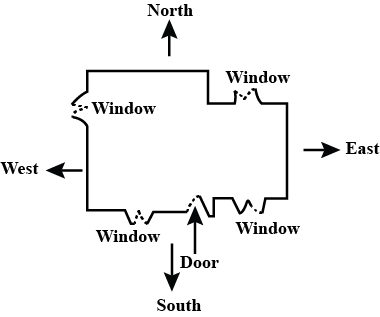

from the given floor plan for the house
We can observe that, main door is on south side.
So, this side will be considered as front side of the house,
So, from the figure we can say that there are two windows on the front side.
$$\therefore$$ Option B.2 is correct answer.
Question 3
1 / -0

Identify the side view of the given solid

A

B

C

D

Solution

From the side there are two rectangles shown, Hence the side view is.
Question 4
1 / -0

Total number of windows in North direction?

A
0

B
1

C
2

D
3

Solution

From the given floor plan, it is seen that there is only $$1$$ window facing North.
Question 5
1 / -0

Which of the following figures is the solid as viewed from above?

A

B

C

D

Solution

In this figure, base has $$4$$ cubes on either direction and height has $$3$$ cubes.
Only one side is fully covered from front and $$1$$ side has top level row.
If we see from the top, we will get only boundary of cubes.
Hence, option $$D$$ is correct.
Question 6
1 / -0

Which direction is the door facing?

A
East

B
North

C
South

D
West

Solution

From the given floor plan, it is clear that the door is facing South.
Question 7
1 / -0

Total number of windows in East direction?

A
0

B
1

C
2

D
4

Solution

From the given floor plan, we can see that there are $$0$$ windows facing East.
Question 8
1 / -0

Identify the nets which can be used to make cubes (cut-out the nets and try it)

A
only $$(iii),(iv)$$ and $$(v)$$ form a cube

B
only $$(ii),(iv)$$ and $$(vi)$$ form a cube.

C
only $$(i),(ii)$$ and $$(iii)$$ form a cube

D
All form a cube

Solution

Only $$(ii),(vi)$$ and $$(vi)$$ form a cube.
Question 9
1 / -0

Four shapes are shown in the figure. Each figure is folded along the dotted line. From which shape box can be made?

A
shape A

B
shape B

C
shape C

D
shape D

Solution

From the given shapes, figure C can be folded to form a box with a lid.
Question 10
1 / -0

Which direction is the front of the house facing?

A
South

B
West

C
East

D
North

Solution

From the given floor plan, we are asked to find the direction of the front side of the house.
We begin by identifying the front side of the house to be the one containing the door.
From the floor plan, we can see that the side containing the door is facing South.
Hence the front of the house is facing South - Option $$A$$
