Question 1
1 / -0

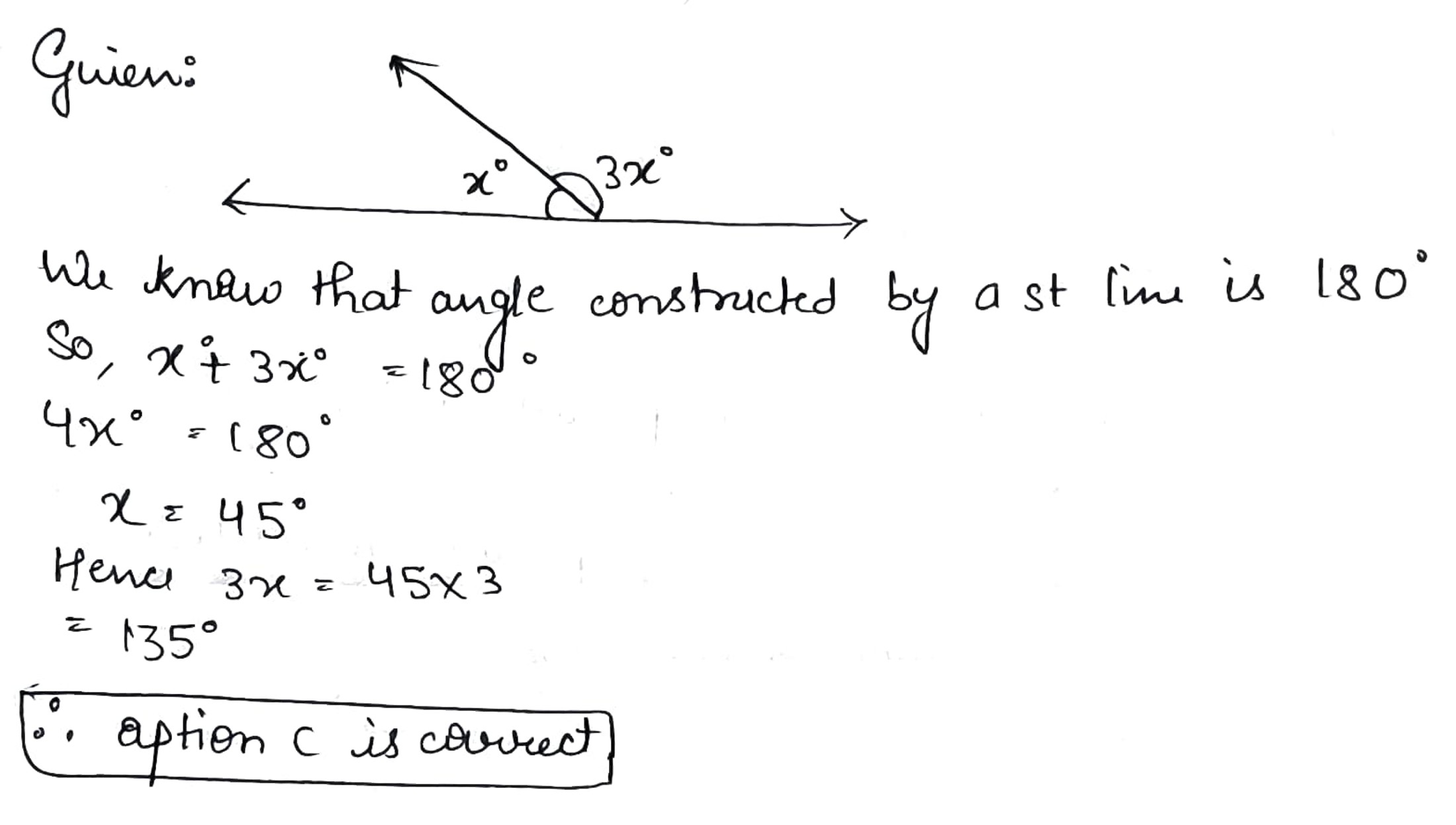

In the given figure, magnitude of angles are ..........

A
$$40^\circ\,,120^\circ$$

B
$$30^\circ\,, 90^\circ$$

C
$$45^\circ\,,135^\circ$$

D
$$50^\circ\,,150^\circ$$

Solution
Question 2
1 / -0

BCD is a line segment and Angle BAC$$=1_{/4}$$ Angle ACB; Angle ACD$$=?$$

A
$$140$$

B
$$100$$

C
$$120$$

D
$$60$$

E
It cannot be determined from the information given
Question 3
1 / -0

In the adjacent figure, BA and BC are produced to meet CD and AD produced in E and F. Then $$\angle AED + \angle CFD$$ is ________.

A
$$80^o$$

B
$$50^o$$

C
$$40^o$$

D
$$160^o$$

Solution

In $$\triangle AED,$$
$$\angle AED+\angle EAD+90°=180°\\ =>\angle AED+\angle EAD=90°\\ =>\angle EAD=90°-\angle AED........(i)$$
Also, $$\\ \angle EAD=50°+\angle AFB.........(ii)$$ (exterior angle property)

From $$(i)$$ and $$(ii)$$, we have,
$$50°+\angle AFB=90°-\angle AED\\ =>\angle AFB+\angle AED=40°\\ =>\angle AED+\angle CFD=40°\quad (\angle AFB=\angle CFD)$$.

Therefore, option $$C$$ is correct.
Question 4
1 / -0

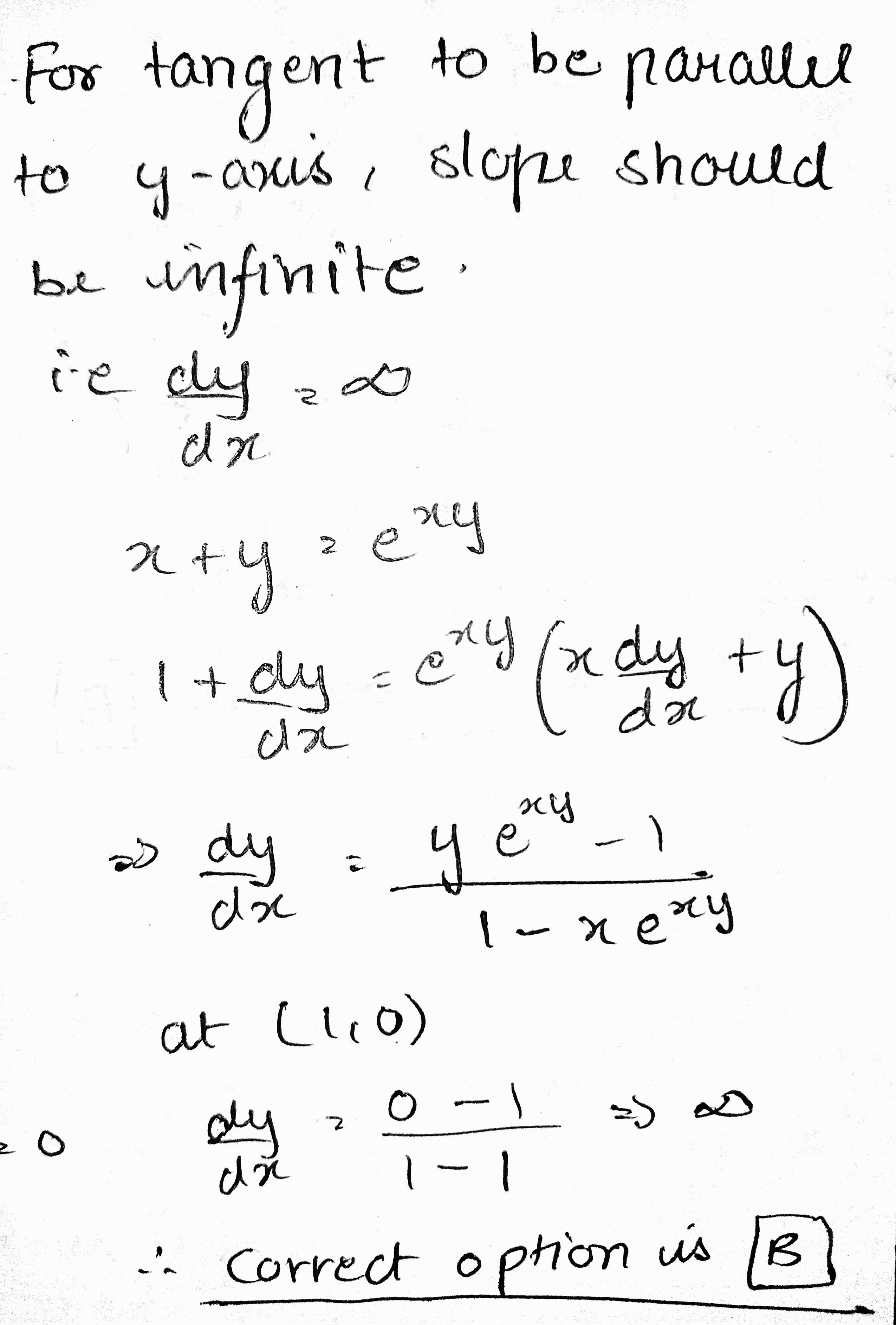

The curve x + y = $$e^x$$$$^y$$ has a tangent parallel to y-axis at the point

A
(0, 1)

B
(1, 0)

C
(1, 1)

D
None of these

Solution
Question 5
1 / -0

A reflex angle is ______ a straight angle.

A
Smaller than

B
Larger than

C
Equal to

D
One-half of

Solution
Question 6
1 / -0

Draw the pairs of angles as described below. If that is not possibly, say why

A
Complementary angles that are not adjacent

B
Angles in a linear pair which are not supplementary.

C
Complementary angles that do not form a linear pair.

D
Adjacent angles which are not in a linear pair.

E
Angles which are neither complementary nor adjacent.
Question 7
1 / -0

A_____angles form by intersecting any two lines are always congruent.

A
Alternate angles.

B
Interior angles

C
Vertically opposite angle

D
Corresponding angles.
Question 8
1 / -0

If the difference of two complementary angle in $${ 10 }^{ 0 }$$, then the smaller angle is

A
$${ 40 }^{ 0 }$$

B
$${ 50 }^{ 0 }$$

C
$${ 45 }^{ 0 }$$

D
$${ 85 }^{ 0 }$$
Question 9
1 / -0

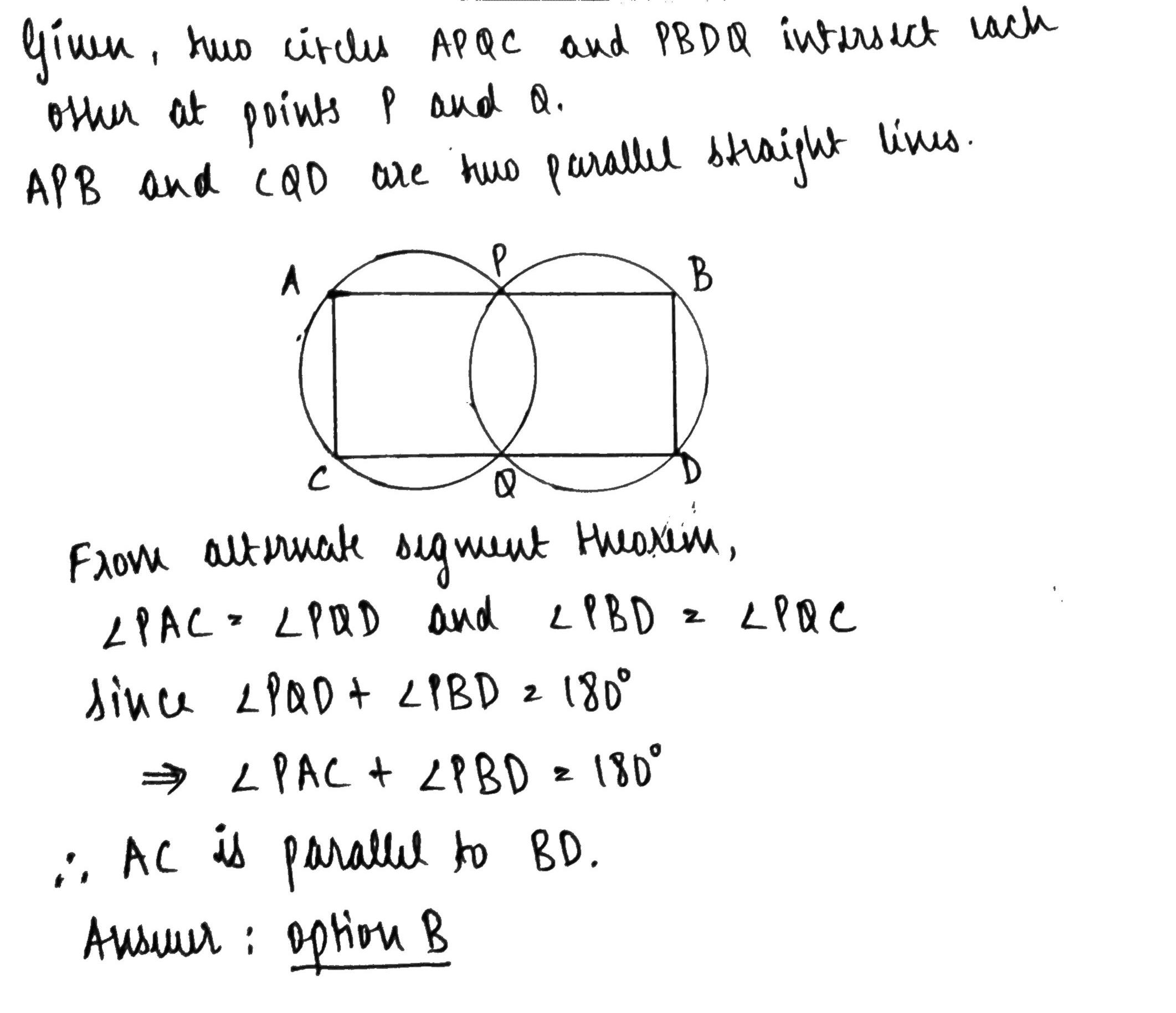

Two circles APQC and PBDQ intersect each other at the points P and Q and APB and CQD are two parallel straight lines. Then only one of the following statements is always true. Which one is it?

A
ABDC is a cyclic quadrilateral.

B
Ac is parallel to BD.

C
ABDC is a rectangle.

D
$$\angle ACQ$$ is a right angle.

Solution
Question 10
1 / -0

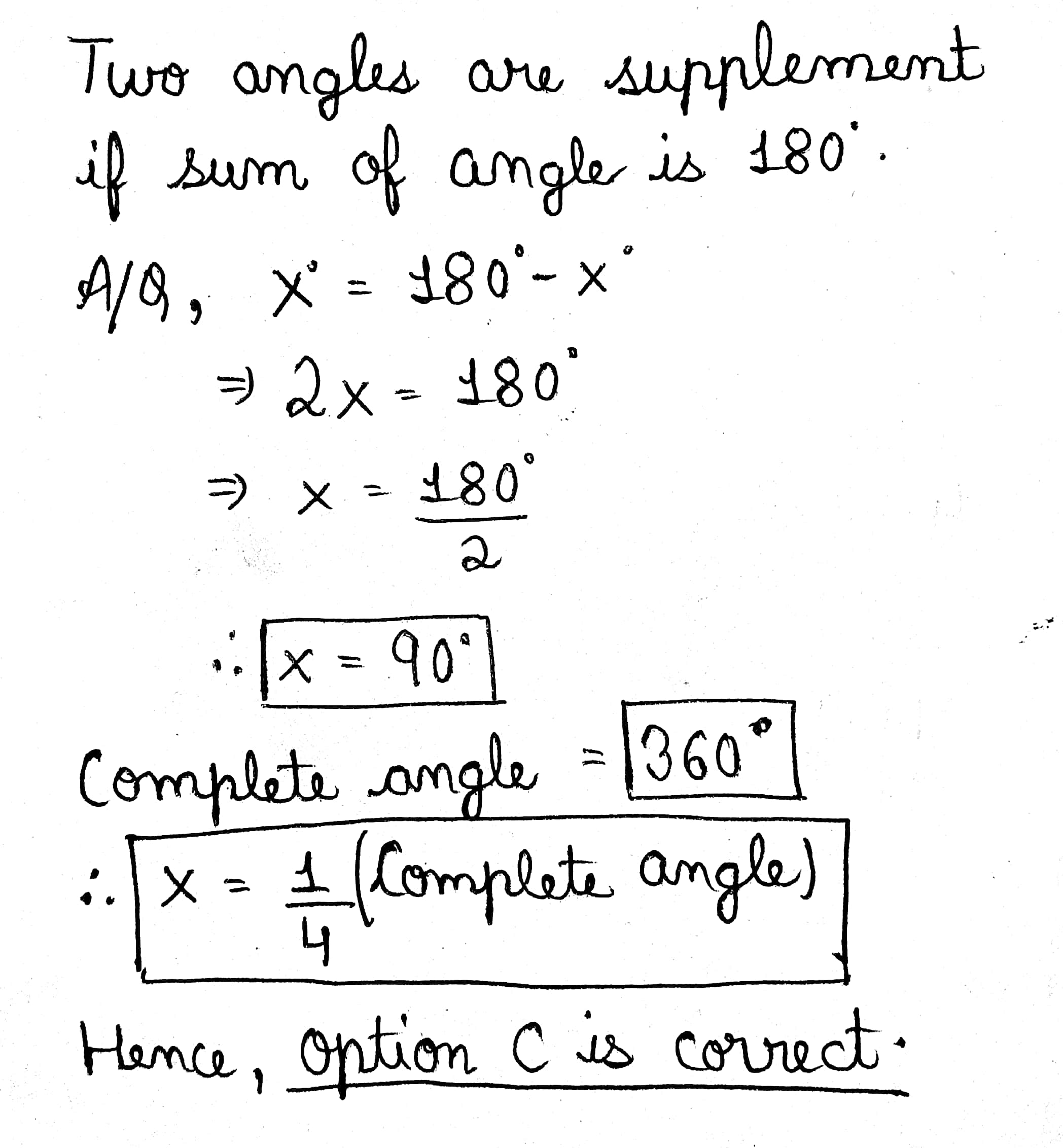

If an angle $$x^\circ $$ is equal to supplement, then the angle is

A
$$\frac{1}{3}$$ right angle

B
$$\frac{1}{4}$$ straight angle

C
$$\frac{1}{4}$$ Complete angle

D
$$\frac{2}{5}$$ Right angle

Solution
