If the per capita contribution of suspended solids and BOD is 90 gm and 55 gm, find the population equivalents of

1. A combined system serving 1000 persons and having 75 gm per capita daily of BOD.

2. 40,000 litres daily of industrial wastewater containing 1800 mg/l of suspended solids. Respectively,

Consider the following statements.

1. Hydraulic gradient required to initiate " quick" condition is independent of the ratio of volume of voids to volume of solids in a soil mass.

2. Initiation of piping under hydraulic structures can be prevented by increasing the length of flow path of water.

3. Seepage pressure is independent of the coefficient permeability.

In a certain irrigation project and in a given year, 72% and 56% of the culturable command area remained unirrigated in Kharif and Rabi season, then the intensity of irrigation for that year and for that project, will be

A cantilever beam AB of length ‘l’ and subjected to a U.D.L. of intensity ‘w’ KN/m over a length ‘b’ is over a in the figure. If EI is constant, then what is the deflection at C?

A steel bar is subjected to an axial pull of 84 kN. Stress-induced into the bar is 140 N/mm². If Young's modulus is 2 x 10⁵ N/mm², then the longitudinal strain produced will be

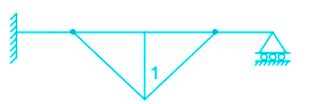

Which one of the following is correct ILD for the Shear force just left to 'C' as shown in the figure.

A rectangular column 300 x 550 mm effective is reinforced with 4 – 32 mm & 2 – 16 mm diameter bars. Lateral ties of diameter ______ should be provided at a spacing of  ________.

What is the ratio of the shape factors for beam cross-sections having rectangular, circular and triangular shapes and of same area?

Consider the following statements:

In the water supply distribution network,

1) The gridiron system requires more lengths of pipelines and a larger number of cut-off valves.

2)  Employing a gridiron system, Repair works can be easily done without affecting the other users.

3) In a dead-end system, the pressure is almost constant and very high at remote parts.

4) Dead end system requires less number of cut-off valves and more number of & scour valves.

Which of these statements are correct?

The integral  is evaluated using Simpson rule on two equal intervals with length 1.
