Consider the below given asynchronous counter consisting of T flip flop in which Q₁ is MSB.

What is the correct sequence of the counter in binary format?

Let M be a 3 × 3 matrix satisfying:

Then the sum of the diagonal entries of M is :

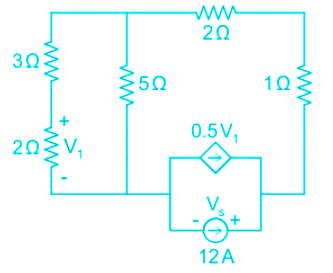

Consider the circuit shown below.

The voltage V_s will be equal to

The following system of equations

x₁ + x₂ + 2x₃ = 1

x₁ + 2x₂ + 3x₃ = 2

x₁ + 4x₂ + ax₃ = 4

has a unique solution. The only possible value(s) for a is/are

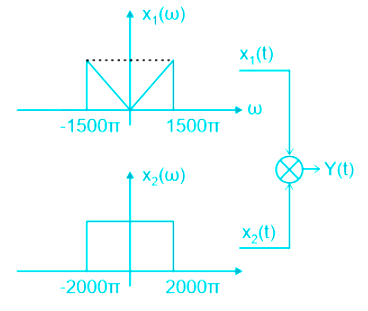

For the following system what will be the maximum frequency for the output Y(t) of this system

Let a causal LTI system be governed by the following differential equation

Its impulse response is

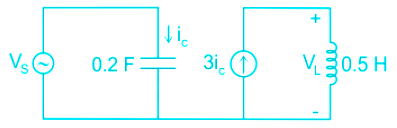

In the circuit shown below

V_s(t) = 5 sin 2t V

The voltage across the inductor will be _____

The neutral base width of a bipolar transistor biased in the active region is 0.4 μm, the maximum electron concentration and the diffusion constant in the base are 10¹⁵/cm³ and 25 cm²/sec respectively. Assuming almost negligible recombination in the base, the collector current density is

A 150 Ω transmission line is connected to a 300 Ω resistance and to a 50 V DC source with zero internal resistance. The voltage reflection coefficients at the load end and at the source end of the transmission line are respectively.
