Physics Test 12...

The volumes of containers A and B, connected by a tube and a closed valve are V and 4 V, respectively. Both the containers A and B have the same ideal gas at pressures (temperatures) 5.0 ×10⁵ Pa(300 K) and 1.0 ×10⁵Pa (400 K), respectively. The valve is opened to allow the pressure to equalise, but the temperature of each container is kept constant at its initial value. Find the common pressure in the containers.

A block of mass 10 kg is suspended through two light spring balances as  shown in figure

If E = 100 sin (100t) volt and are the instantaneous values of voltage and current, then the R.M.S values of voltage and current are respectively.

Two spherical bodies of mass M and 5 M and radii R and 2 R, respectively are released in free space with initial separation between their centres equal to 12 R. If they attract each other due to gravitational force only, then the distance covered by the smaller body just before collision is

Mark the correct option.

The length of a given cylindrical wire is increased by 100%. Due to the consequent decrease in diameter the change in the resistance of the wire will be

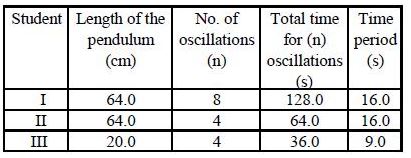

Students I, II and III perform an experiment for measuring the acceleration due to gravity (g) using a simple pendulum. They use different lengths of the pendulum and /or record time for different number of oscillations. The observations are shown in the table.

Least count for length = 0.1 cm

Least count for time = 0.1 s

If E_I, E_II and E_III are the percentage errors in g, i.e.,

for students I, II and III, respectively, then

Write down the expression for capacitance of a spherical capacitor whose conductors radii are R₁ and R₂(R₂>R1),when inner sphere is grounded.

A mass of M kg is suspended by a weightless string. The horizontal force that is required to displace it until the string makes an angle of 45° with the initial vertical direction is

Acceleration of each block is given as g/5√2. Find the magnitude and direction of force exerted by string on pulley. (μ = 0.4)
