Physics Test 18...

A Carnot engine is working between 127^oC and 27^oC. The increase in efficiency will be maximum when the temperature of

One litre of oxygen at a pressure of 1 atm, and 2 litres of nitrogen at a pressure of 0.5 atm are introduced in the vessel of 1 litre capacity, without any change in temperature. The total pressure would be

A body executes simple harmonic motion under the action of a force F₁ with a time period  If the force is changed to F₂, it executes S.H.M. with time period . If both the forces F₁ and F₂ act simultaneously in the same direction on the body, its time period in second is

Each of the two strings of length 51.6 cm and 49.1 cm are tensioned separately by 20 N force. Mass per unit length of both the strings is same and equal to 1 g/m. When both the strings vibrate simultaneously the number of beats is

Which of the following is a wrong statement?

In a given network the equivalent capacitance between A and B is

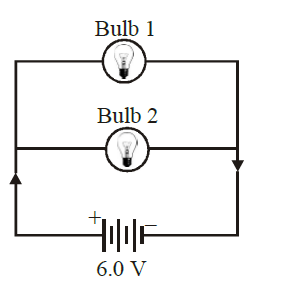

A 6.0 volt battery is connected to two light bulbs as shown in figure. Light bulb 1 has resistance 3 ohm while light bulb 2 has resistance 6 ohm. Battery has negligible internal resistance. Which bulb will glow brighter?

The deflection in a galvanometer falls from 50 division to 20 when a 12 ohm shunt is applied. The galvanometer resistance is

Two short bar magnets of length 1 cm each have magnetic moments 1.20 Am² and 1.00 Am² respectively. They are placed on a horizontal table parallel to each other with their N poles pointing towards the South. They have a common magnetic equator and are separated by a distance of 20.0 cm. The value of the result and horizontal magnetic induction at the mid-point O of the line joining their centres is close to (Horizontal component of earth’s magnetic induction is )

A thin circular ring of area A is held perpendicular to a uniform magnetic field of induction B. A small cut is made in the ring and a galvanometer is connected across the ends such that the total resistance of the circuit is R. When the ring is suddenly squeezed to zero area, the charge flowing through the galvanometer is
