Physics Test 19...

TIME LEFT -
  • Question 1
    4 / -1

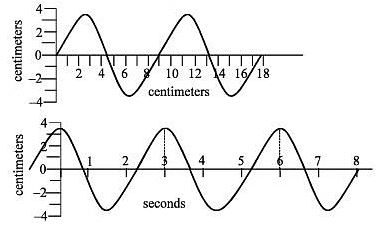

    A transverse wave is travelling along a horizontal string. The first picture shows the shape of the string at an instant of time. This picture is superimposed on a coordinate system to help you make any necessary measurements. The second picture is a graph of the vertical displacement of one point along the string as a function of time. How far does this wave travel along the string in one second?

  • Question 2
    4 / -1

    A cyclic process of an enclosed gas of constant mass is represented by volume (V) against absolute temperature (T) as shown. If P represents pressure, the graph representing the same process can be

  • Question 3
    4 / -1

    A closed organ pipe is vibrating in its second overtone. The length of the pipe is 10cm and maximum amplitude of vibration of particles of the air in the pipe is 2mm. Then the amplitude of S.H.M. of the particles at 9cm from the open end is:

  • Question 4
    4 / -1

    A sound source S and observers O1, O2 are placed as shown. S is always at rest and O1, O2 start moving with velocity v0 at t = 0. At any later instant, let f1 and f2 represent apparent frequencies of sound received by O1 and O2, respectively. The ratio f1/f2 is

  • Question 5
    4 / -1

    Equal masses of three liquids A, B and C have temperatures 10oC, 25oC and 40oC respectively. If A and B are mixed, the mixture has a temperature of 15oC. If B and C are mixed, the mixture has a temperature of 30oC,. If A and C are mixed the mixture will have a temperature of

  • Question 6
    4 / -1

    A steel rod is 4.000 cm in diameter at 30ºC. A brass ring has an interior diameter of 3.992 cm at 30ºC. In order that the ring just slides onto the steel rod, the common temperature of the two should be nearly (αsteel = 11 × 10-6/ºC and αbrass = 19 × 10-6/ºC)

  • Question 7
    4 / -1

    A hot liquid is kept in a big room. The logarithm of the numerical value of the temperature difference between the liquid and the room is plotted against time. The plot will be very nearly.

  • Question 8
    4 / -1

    A body cools from 80°C to 50°C in 5 minutes. Calculate the time it takes to cool from 60°C to 30°C.The temperature of the surroundings is 20°C.

  • Question 9
    4 / -1

    A sinusoidal wave (longitudinal or transverse) is propagating through a medium in the direction of -ve x-axis. The parameters of the waves are A, ω and k. The particle at x = λ/4 executes the motion y(t) = A sinωt. Possible equation of the wave is

  • Question 10
    4 / -1

    PV versus T graph of equal masses of H2, He and CO2 is shown in figure.

    Choose the correct alternative
