  • Question 1
    1 / -0
    A cylindrical tube, open at both ends, has a fundamental frequency, f, in air. The tube is dipped vertically in water so that half of it is in water. The fundamental frequency of the air-column is now
  • Question 2
    1 / -0
    A circular loop of radius 0.3 cm lies parallel to a much bigger circular loop of radius 20 cm. The centre of the small loop is on the axis of the bigger loop. The distance between their centres is 15 cm. If a current of 2.0 A flows through the smaller loop, then the flux linked with bigger loop is
  • Question 3
    1 / -0

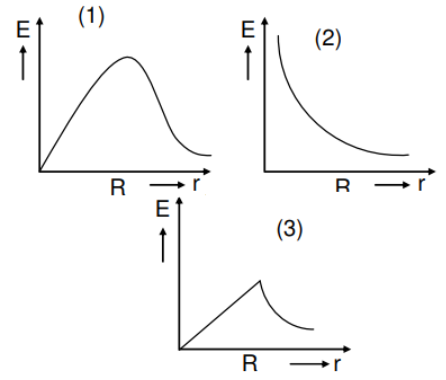

    In a uniformly charged sphere of total charge Q and radius R, the electric field E is plotted as a function of distance from the centre. The graph which would correspond to the above will be
  • Question 4
    1 / -0
    The amplitude of a damped oscillator decreases to 0.9 times its original magnitude is 5s. In another 10s it will decrease to α times its original magnitude, where α equals.
  • Question 5
    1 / -0
    A diode detector is used to detect an amplitude modulated wave of 60% modulation by using a condenser of capacity 250 pico farad in parallel with a load resistance 100 kilo ohm. Find the maximum modulated frequency which could be detected by it.
  • Question 6
    1 / -0
    An ideal gas enclosed in a vertical cylindrical container supports a freely moving piston of mass M. The piston and cylinder have equal cross sectional area A. When the piston is in equilibrium, the volume of the gas is V0 and its pressure is P0. The piston is slightly displaced from the equilibrium position and released. Assuming that the system is completely isolated from its surrounding, the piston executes a simple harmonic motion with frequency:
  • Question 7
    1 / -0
    The magnetic field in a travelling electromagnetic wave has a peak value of 20 nT. The peak value of electric field strength is :
  • Question 8
    1 / -0
    Two electric bulbs marked 25W – 220V and 100W – 220V are connected in series to a 440V supply. Which of the bulbs will fuse?
  • Question 9
    1 / -0
    Assume that a neutron breaks into a proton and an electron. The energy released during this process is (Mass of neutron = 1.6725 x 10^–27 kg; mass of proton = 1.6725 x 10^–27 kg; mass of electron = 9 x 10^–31 kg)
  • Question 10
    1 / -0

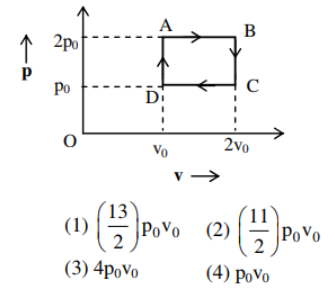

    The above p-v diagram represents the thermodynamic cycle of an engine, operating with an ideal monoatomic gas. The amount of heat extracted from the source in a single cycle is
