Physics Test 138

A car, moving with a speed of 50 km/hr, can be stopped by brakes after at least 6 m. If the same car is moving at a speed of 100 km/hr, the minimum stopping distance is

A point P moves in counter-clockwise direction on a circular path as shown in the figure. The movement of 'P' is such that it sweeps out a length  where s is in meters and t is in seconds. The radius of the path is 20 m. The acceleration of 'P' when t = 2 s is nearly

A block of mass m is resting on a smooth horizontal surface. One end of a uniform rope of mass (m/3) is fixed to the block, which is pulled in the horizontal direction by applying a force F at the other end. The tension in the middle of the rope is

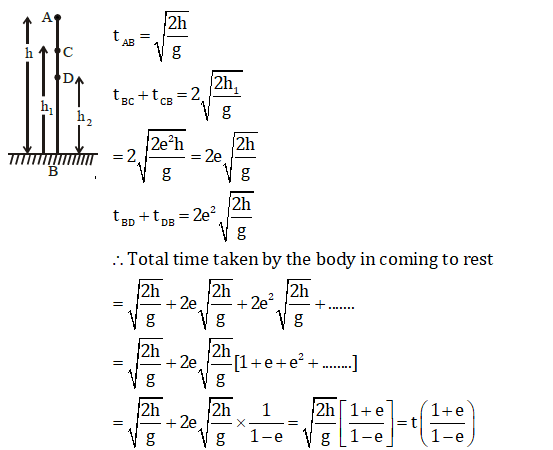

A glass marble dropped from a certain height above the horizontal surface reaches the surface in time t and then continues to bounce up and down. The time in which the marble finally comes to rest is

A mass m moves in a circle on a smooth horizontal plane with velocity v₀ at a radius R₀. The mass is attached to string which passes through a smooth hole in the plane as shown. The tension in the string is increased gradually and finally m moves in a circle of radius R₀/2.The final value of the kinetic energy is

Which graph correctly presents the variation of acceleration due to gravity with the distance from the centre of the earth

Steel ruptures when a shear of  is applied. The force needed to punch a 1 cm diameter hole in a steel sheet 0.3 cm thick is nearly:

A liquid does not wet the sides of a solid, if the angle of contact is

The figure shows a system of two concentric spheres of radii r₁ and r₂ are kept at temperatures T₁ and T₂,respectively. The radial rate of flow of heat in a substance between the two concentric spheres is proportional to

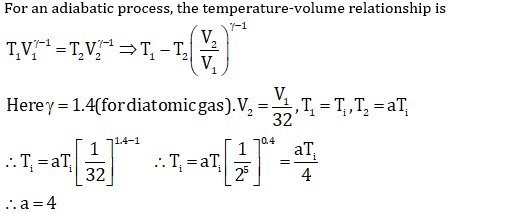

A diatomic ideal gas is compressed adiabatically to 1/32 of its initial volume. If the initial temperature of the gas is T_i, (in Kelvin) and the final temperature is a T_i, the value of a is
