CBSE Class 12th Physics 2023 : Important Diagrams For Last Minute Revision

CBSE Class 12 Physics Important Diagrams : We are presenting here some important diagrams from CBSE Class 12 Physics topic. Questions based on these diagrams are often asked in CBSE Board Exams.

With this article, students can revise all the important diagrams in very less time and prepare well to score high in their CBSE Class 12 Physics Exam 2023.

MOST IMPORTANT GRAPHS AND DIAGRAMS

ELECTROSTATICS

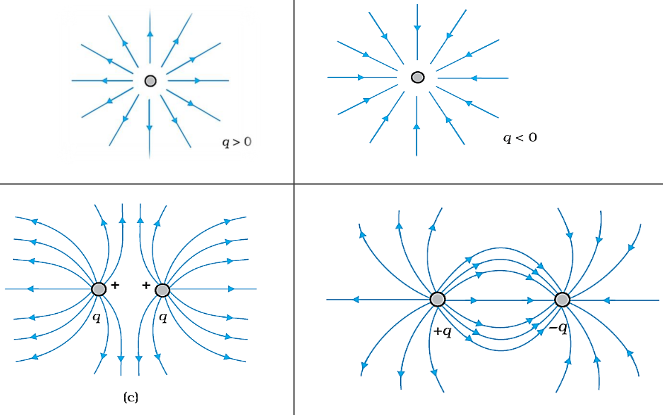

Electric Fields

Potential and Capacitors

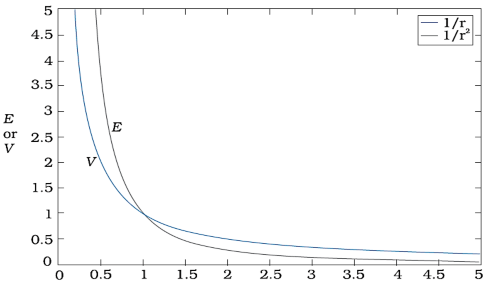

Electric field Vs Potential

Gaussian surfaces

E vs V for equipotential surfaces

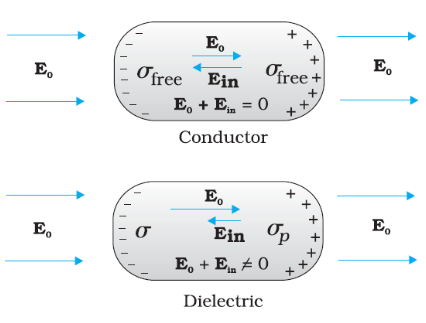

Effect In Electric Field

Current Electricity

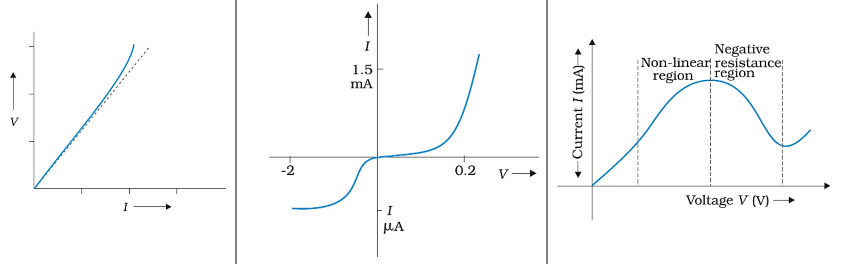

Ohm’s Law

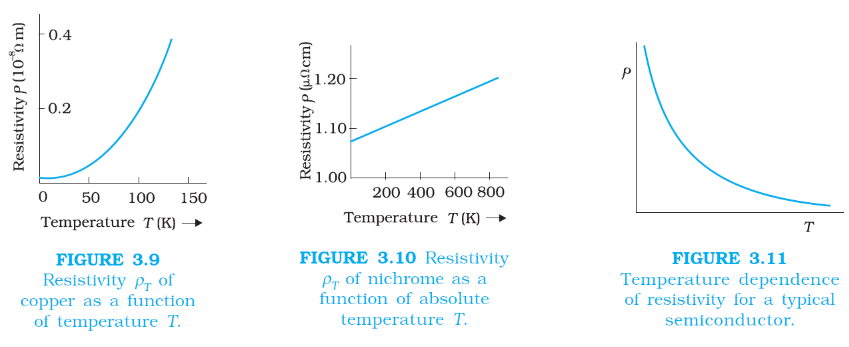

Resistance Vs Temp

Moving Charge Magnetism

Motion of charged particle In Magnetic field

Direction of Magnetic Field

Magnetism & Matter

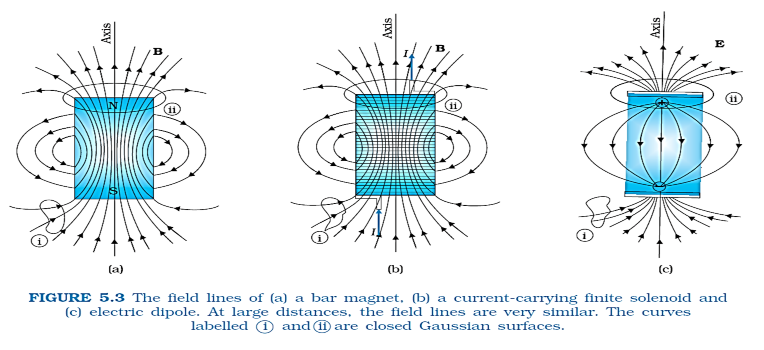

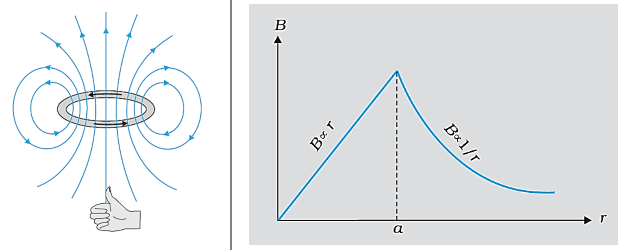

Magnetic Field Lines

Diamagnetic Vs Paramagnetic

Hysteresis Curve

Alternating Current

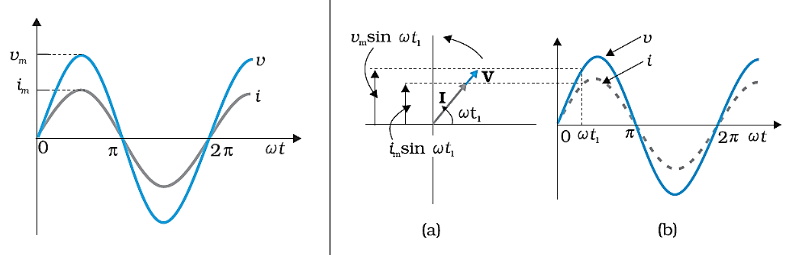

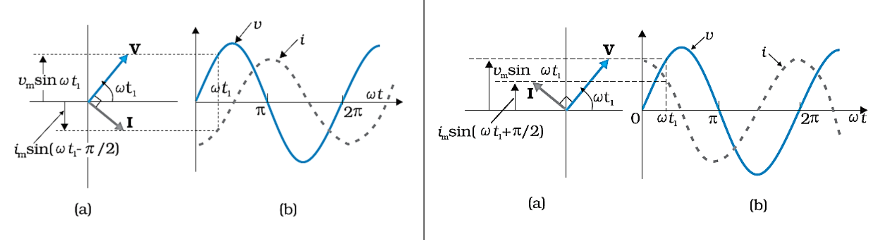

Phasor Diagram

Phasor Diagrams

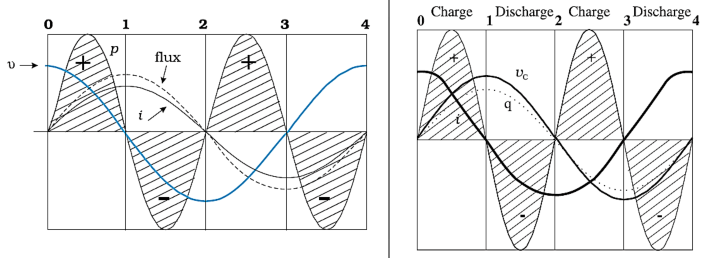

Wave form curves

Resonance Curve

Electromagnetic Wave

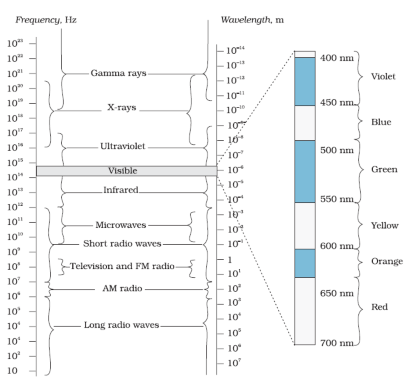

Electromagnetic Magnetic wave
